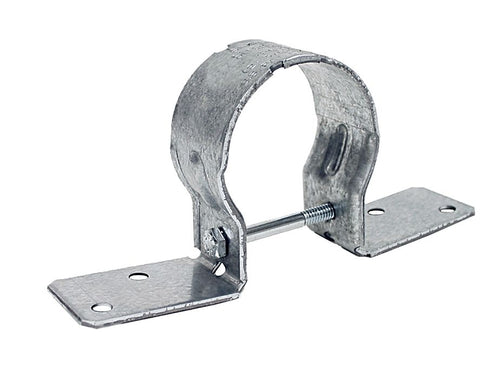

Simpson PGT® Pipe Grip Tie®

Simpson Strong-Tie

$2.29
Unit price per

Select

Quantity

+ -

The PGT is a tie designed for attaching wood fence rails to metal fence posts. This pipe grip tie can be used in new construction or to replace damaged wooden posts. Ideal for a variety of conditions, the PGT helps to eliminate the rot and failures to which wood fence posts are most prone, thus extending the life of a fence.

Key Features

A solid connection with quick and easy installation
Ideal for replacing damaged wood posts or for new fence construction
Galvanized steel construction for durability and corrosion resistance

Applications

PGT1.5Z-R is for 1 1/2" pipe (1 7/8" outside diameter)
PGT2-R and PGT2Z-R are for 2" pipe (2 3/8" outside diameter)
PGT2A is for 2" pipe (2 3/8" outside diameter)
PGT2E is for 2" pipes (2 3/8" outside diameter) and features a two-piece design that provides a solid connection between fence stringer and post

Product Includes

PGT1.5Z-R, PGT2A, PGT2Z-R and PGT2-R include 1 bolt
PGT2E-R50 is sold as full carton with (50) attachment plates, (50) front straps and (55) 1/4" diameter x 3/4"-long hex-head bolts

Material

PGT2A— 14 gauge; all others 12 gauge

Finish

PGTA, PGT2-R, PGT2E — galvanized; PGT1.5Z, PGT2Z-R — ZMAX^®

Installation

Use all specified fasteners
Install on vertical pipes, offsetting corners to allow for the correct rail alignment.
Use three to four PGTs per pipe; line up to stringline.
Tighten PGT with one 1/4" hex-head bolt (supplied).
Attach PGT to rails using four 1/4" x 1 1/2" Strong-Drive^® SDS Heavy-Duty Connector screws (not supplied). 1/4" lag screws may be substituted. Follow the code requirements for predrilling.
Field bend PGT flanges to fit corner and angled conditions (bend one time only).
PGTSCREW-R10 is a pack of (10) 1/4" x 2 1/2" replacement hex-head screw bolts for the PGT2A, PGT2-R, PGT2Z-R and PGT1.52Z-R.

Patent Information

US Patent 8,596,618
